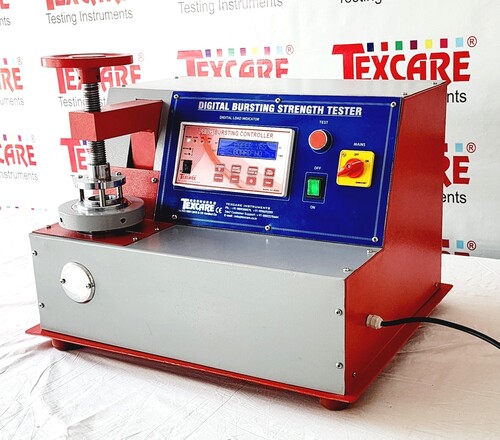

Computerised Bursting Strength Tester
85000 INR/Unit
Product Details:
- Weight Approx 75Kg (Gross Weight) Kilograms (kg)
- Product Type Bursting Strength Tester
- Power 220 Volt AC 50 Hz Volt (v)
- Power Supply 220 V AC 50Hz ( Optional: 110V AC 60 Hz)
- Color Orange And White And Blue
- Click to view more
X
Computerised Bursting Strength Tester Price And Quantity
- 85000 INR/Unit
- 1 Unit
Computerised Bursting Strength Tester Product Specifications
- Approx 75Kg (Gross Weight) Kilograms (kg)
- 220 V AC 50Hz ( Optional: 110V AC 60 Hz)
- Orange And White And Blue
- 220 Volt AC 50 Hz Volt (v)
- Bursting Strength Tester
Computerised Bursting Strength Tester Trade Information
- 20 Unit Per Week
- 4 Days
- Wooden Packing
- All India
Product Description
Computerised Bursting Strength Tester:- Maximum Capacity: 0 to 40 Kg/cm2.
- Least Count : 0.1 Kg/cm2.
- Accuracy: 1 kg/cm2.
- Clamping : Manual
- Test Fluid : Glycerin
- Rate of Fluid Displacement: 95 cc / Minute
- Opening of upper clamp 31.5 mm
- Opening of lower clamp 30.5 mm
- Display: LED Digital & Computerized both.
- Power Supply: Single Phase 220-240V AC, 50 Hz.
- Motor: 1/4 HP, Single Phase 1440 rpm.
- Control Method Manual/Computerised.
- Sample Type Foil, Pouches, Paper, Board & Corrugated.
- Approximate Weight : 75 Kg (Gross Weight)
Product details
| Accuracy | 1 Kg/cm2 |
| Upper Clamp Opening | 31.5 mm |
| Test Fluid | Glycerine |
| Sample Types | Paper, Corrugated Box, Board, Foils and Pouches |
| Power Supply | 220 V AC 50Hz ( Optional: 110V AC 60 Hz) |
| Motor | 1/4 HP Single Phase |
| Maximum Capacity | 40 Kg/cm2 |
| Lower Clamp Opening | 30.5 mm |
| Least Count | 0.01kgf (10gms) |
| Fluid Displacement Rate | 95 cc per minute |
| Display | LED Digital and Computer both |
| Clamping | Pneumatic |
| Approx Weight | 75Kg (Gross Weight) |
